Carbon Black Analysis tester

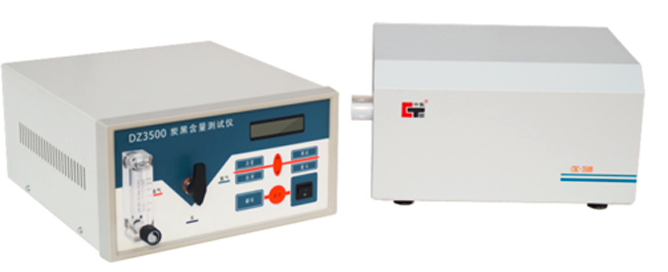

GW-3500 Carbon Black analysis equipment

Carbon Black Analysis tester Use:

Carbon Black Testing Equipment is used to to determine the carbon black content of polyethylene, polypropylene and polybutylene etc.

The equipment is comprised by following apparatus: Electric Furnace, high Temperature Glass Combustion， Tube, Glass Tubing, Stoppers,

Combustion Boat, Iron-Constantan Thermocouple， Traps， Drying Tube.

The equipment according to ASTM D1603-01，ISO6964-1986（E）standard

Note: It should not be used for testing the carbon black content of acrylic or other polar monomer modification of polymer

Main technical parameters:

Furnace Test temperature ：23℃-1000℃

Temperature accuracy：±1%

Power supply: 220V/50Hz/3.0k

Dimension ：600(mm)×650(mm)×800(mm)（about 60kg)
