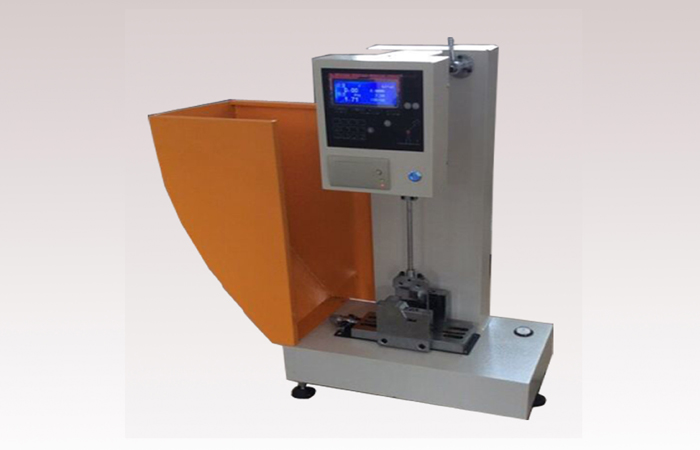

Charpy impact testing machine
This pendulum impact testing machine is used to measure the impact ductility of the plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, insulating material and other non-metal material. The machine can determinethe charpy impact test for the lab of scientific institution, academy, non- metal manufacturer and quality supervision unit.
Charpy Impact Tester Techinical parameters
Category |
Charpy impact testing machine |
|||
Standard |
ISO179,ISO9854 |
|||
Display Model |
Pointer |
Digital |
||
Type |
XJJ-5 |
XJJ-50 |
XJJD-5 |
XJJD-50 |
Impact energy |
1J, 2J 4J, 5J |
7.5J, 15J 25J, 50J |
1J, 2J 4J, 5J |
7.5J, 15J 25J, 50J |
Velocity at impact |
2.9m/s |
3.8m/s |
2.9m/s |
3.8m/s |
Strike center distance |
230mm |
395mm |
230mm |
395mm |
